On a compact footprint of just under 7 x 4 m (or 4 x 4 m in semi-automatic mode), this innovative robot cell enables a working distance of 5 m to 6 m between the production lines. Our robot is versatile and can handle shipping cases of different sizes. Optionally, intermediate layers can be inserted at predefined levels.
The design allows stacking on EURO or industrial pallets according to the specific job syntax, with the particular advantage that no additional pallet magazine is required. Control is intuitive via a user interface with a large touch screen similar to that of our tried-and-tested Diana folder gluers.
The robot cell has both the CE mark and the GS mark.
Data sheet

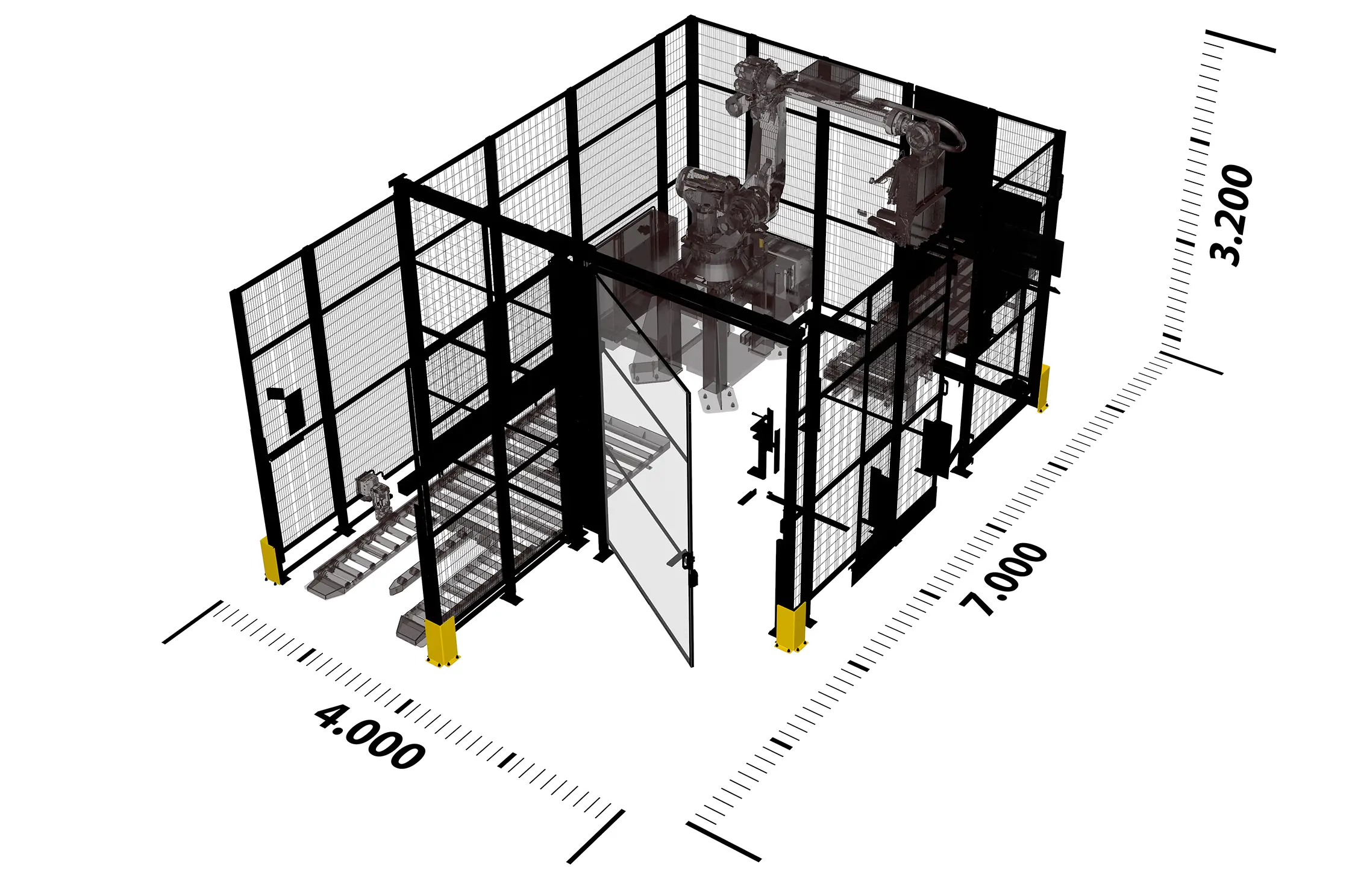

Dimensions:
approx. 7.000*mm x 4.000 mm x 3.200 mm (LxWxH)
* Length incl. 1,200 mm feed belt
Output:
up to 450 cases per hour
Case sizes:
Length: 300 ... 600 mm
Width: 130 ... 450 mm
Height: 160 ... 500 mm
Special dimensions on request
Pallet sizes:
EURO or industrial pallets
Safety:
CE mark and GS mark
As a research and development location of folder gluers and peripheral machines, we have a large test center with our own folder gluers and robots.
